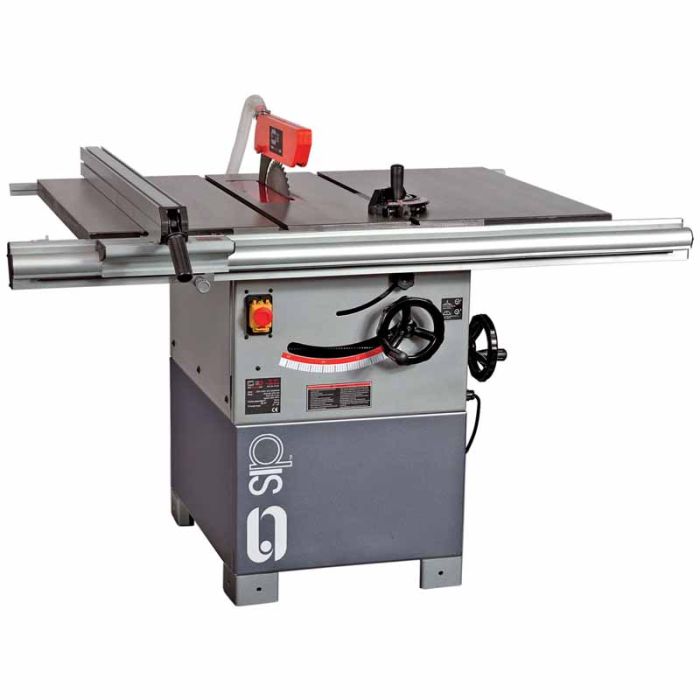

SIP 10 Inches Professional Cast Iron Table Saw - H25.4 cm
The SIP 10" Professional Cast Iron Table Saw is a must for any good woodworking workshop, offering easy ripping, cross cutting, miter cuts, bevelling, and sheet preparation through a combination of large and adjustable work surfaces suitable for all applications.
Designed for trade and professional woodwork applications.Key Features:
- 53mm @ 45° and 75mm @ 90° maximum depth of cut
- 10" TCT rise and fall blade with fine precision
- 1170mm x 800mm table size using two extensions
- Rip fence with 'Quick-Lock' micro adjustment
- T-slotted cast mitre guide and push stick
Delivery Information
Delivery within an estimated 2 - 8 working days
Delivery is FREE to the UK Mainland and Northern Ireland.
Details
Having a powerful table saw in the arsenal is essential for all woodworking workshops, providing a versatility unmatched by most. The SIP 10" Professional Cast Iron Table Saw gives you exceptional performance regardless of the cut, whether ripping, cross cutting, miter, bevelling, or preparing a wood sheet.
This is made easy not only by the power of the saw and the high-quality blade within, but the large working surface that the saw offers, with a table and 2 extensions to amount to a 1170mm x 800mm total area, perfect for timber, logs, and more of all sizes.
Features:
- 53mm @ 45° and 75mm @ 90° maximum depth of cut
- 10" TCT rise and fall blade with lock for fine precision
- Powerful induction motor provides heavy-duty performance
- Fitted with an accurate 0° to 45° arbor with blade lock
- 560mm x 800mm standard table size for a large area for all wood sizes, which can be enhanced through two supplied extensions for total of 1170mm x 800mm
- T-slotted heavy-duty cast iron mitre guide and push stick
- Quick adjustment rip fence with Quick-Lock micro adjustment
- Heavy-duty cabinet stand included for improved stability
- Optional wheel kit available; sold separately
- Integrated NVR switch for added safety
- SIP 2-Year Standard Silver Warranty
Dimensions:
- Net Weight (Kg): 177.00 (P1) / 12.00 (P2)
Technical Data:
- Input Supply: 230v (16A)
- Motor Power: 2.2kW (3hp)
- Blade Tilting: to left 45°
- Depth of Cut @ 45°: 53mm
- Depth of Cut @ 90°: 75mm
- Standard Table Size: 560mm x 800mm
- Extended Table Size: 1170mm x 800mm
- Blade to Fence Size: 1060mm
- Blade Diameter: Ø 254mm
- Blade Bore Size: 25.4mm
- Blade Speed: 3500rpm
- Table Height: 845mm
